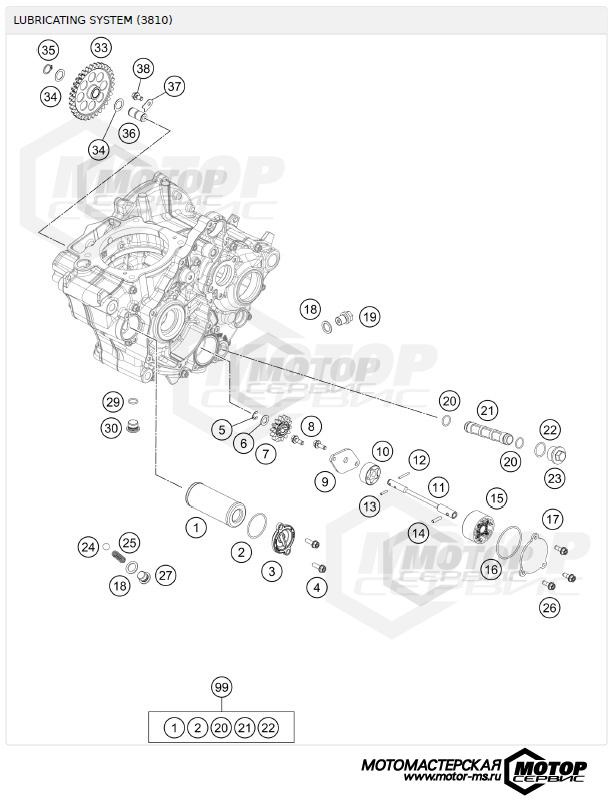

LUBRICATING SYSTEM |
| | # | артикул | наименование | деталей в узле | комментарий | цена | | | 1 | 77338005100 | Oil Filter 07 | 1 | | 998 руб. | | 2 | 07703305178 | O-RING 33,05X1,78 | 1 | | 175 руб. | | 3 | 77338041200 | OIL FILTER COVER 08 | 1 | | 2501 руб. | | 4 | 0025060166 | HH collar screw M6x16 TX30 | 2 | | 197 руб. | | 5 | 0799060000 | TAB WASHER DIN6799-RS 6,0 | 1 | | 119 руб. | | 6 | 58038007755 | STOP DISK 8,1 X 15 X 0,5 | 1 | | 275 руб. | | 7 | 77038001200 | Oil pump gear | 1 | | 2385 руб. | | 8 | 0025050146S | Hex coll. screw M5x14 ISA30 self-locking | 2 | | по запросу | | 9 | A48038003000 | Oil pump cover | 1 | | 2501 руб. | | 10 | 59038011112 | OILPUMP ROTOR-SET 12MM CPL. | 1 | | 4337 руб. | | 11 | 79238002100 | Oil pump shaft | 1 | | 3282 руб. | | 12 | 0402251980 | NEEDLEROL.DIN5402 NRA 2,5X19,8 | 1 | | 175 руб. | | 13 | 0402251180 | NEEDLE ROLLER DIN5402 2,5X11,8 | 1 | | 175 руб. | | 14 | 0402041580 | needle roller NRB 4x15.8 G2 | 1 | | по запросу | | 15 | 61238011100 | ROTOR SET 22MM | 1 | | 6057 руб. | | 16 | 0770440020 | O-RING 44,00X2,00 VITON | 1 | | 373 руб. | | 17 | 79238004000 | OIL PUMP COVER LEFT | 1 | | 2051 руб. | | 18 | 58038022000 | CU-seal ring DIN7603-12X18X1.5 | 2 | | 235 руб. | | 19 | 58030021100 | oildrain plug with magnet | 1 | | 1250 руб. | | 20 | 07701250151 | O-RING 12,5X1,5 VITON V75 | 2 | | 313 руб. | | 21 | 59038016200 | Oil screen | 1 | | 1466 руб. | | 22 | 0770020170 | O-RING 17,17X1,78 GLO | 1 | | 138 руб. | | 23 | 59038017100 | PLUG M20X1,5 WS=13 | 1 | | 1250 руб. | | 24 | 0401090003 | BALL DIN5401-9 | 1 | | 119 руб. | | 25 | 58038023300 | PRESSURE SPRING L=25MM D=1MM | 1 | | 665 руб. | | 26 | 0025050146S | Hex coll. screw M5x14 ISA30 self-locking | 3 | | по запросу | | 27 | 78036024000 | PLUG SCREW SAS M12X1,5 | 1 | | 744 руб. | | 29 | 0770110015 | O-ring 11x1.5 VITON | 1 | | 313 руб. | | 30 | 78036081100 | Screw plug M14x1,5 | 1 | | по запросу | | 33 | 79238006300 | Oil pump intermediate gear | 1 | | по запросу | | 34 | 0988121805 | SHIM WASHER DIN0988-12X18X0,50 | 2 | | 119 руб. | | 35 | 0471120010 | retaining ring DIN 471 12x1 | 1 | | 138 руб. | | 36 | 77038013100 | BUSHING PIN | 1 | | 958 руб. | | 37 | 77238061050 | AXIAL-CIRCLIP | 1 | | 567 руб. | | 38 | 0025050106S | Hex coll. screw M5x10 ISA30 self-locking | 1 | | 235 руб. | | 99 | 00050000083 | OILFILTER-GASKET SET 350 SX-F | 0 | | 2657 руб. | |
|
|
